RC Titanium-Adhesive Bases (Ti-Base)

In addition to Tissue Level implants Meisinger Implants offers Bone level implants for bone level restorations. The implants offer a more flexible approach to allow an individual emergence profile and serve to achieve better esthetic results.

For Bone Level implants submerged healing is recommended, making them particularly suitable for clinical situations where a two-phase procedure is indicated. The Bone Level implant is available in two versions, cylindrical and tapered (BLT).

Brochures
Meisinger Implants Flyer Meisinger Implants Flyer
Who is Who - Bone Level Who is Who - Bone Level
Catalogues
Meisinger Implant Catalogue Meisinger Implant Catalogue
X
Clear
SKU: N/A Categories: , ,
Code
Product
Description
Product Ref.
MIM22150

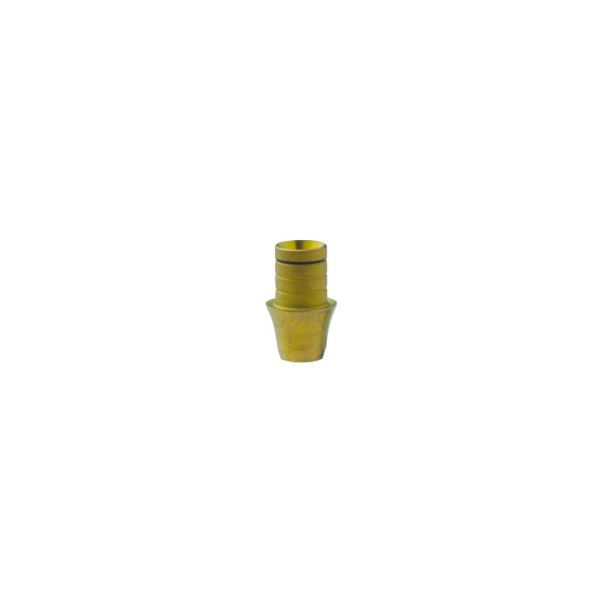

RC Ti-Base, engaging, 31167 and 22120 incl. - MIM22150
Parallel, 15 deg, Dia 3.5mm, H 5.5mm
Product Ref.
MIM77404

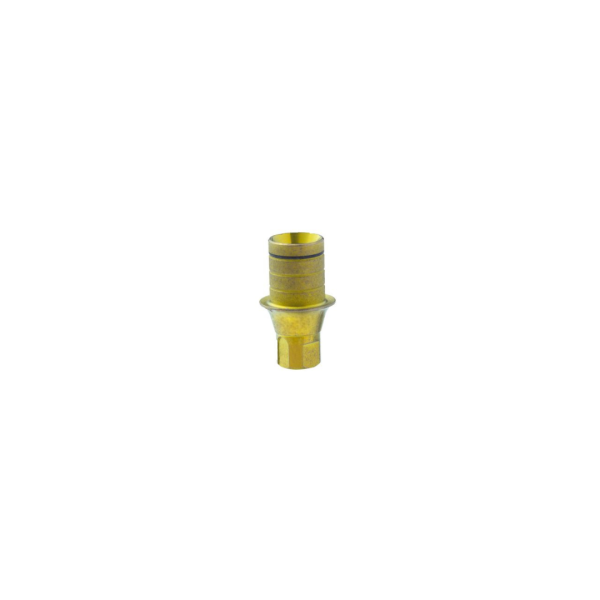

RC Ti-Base IL, engaging, plastic coping & screw incl. - MIM77404
Crown, H 4.2mm
Product Ref.
MIM77406

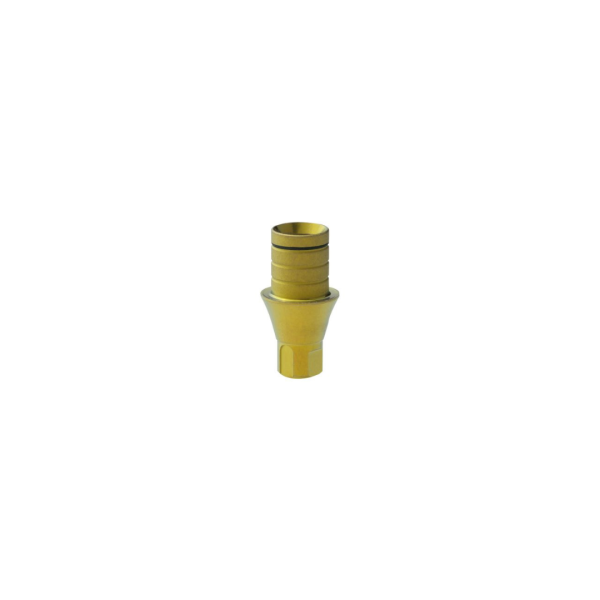

RC Ti-Base IL, non-engaging, plastic coping & screw incl. - MIM77406
Bridge, H 4.2mm
Product Ref.
MIM77408
RC Ti-Base C IL, engaging, screw incl. - MIM77408
for Dentsply Sirona CEREC, GH 1.0mm, H 4.7mm

Connection

  • The Bone Level Implant connection has a 15° inner conical connection with a platform switch. In the implant are four anti-rotational grooves

Material & Surface

    • OKTAGON® Dental Implants are manufactured from Grade 4 pure titanium. The surface is Sandblasted with Large-Grit and Acid-Etched. The macro-roughness exhibits a profile of 20 to 40 µm with micro-roughness of 2.0 to 4.0 µm

Prosthetics

    • The prosthetic connection on the abutments have an octagonal configuration allowing to position them in eight different positions. The conical connection gives a strong implant-abutment connection.

Guarantee

    • The MEISINGER IMPLANTS guarantee program is designed to support all clinicians involved with the OKTAGON® Dental Implant System
